Got a Fuel pump? Water pump? Methanol Injection, Nitrous Valve and Heater? 2 Step AND a ton of spaghetti for wires! If you are most people WE hate the wiring! no matter how clean you make it you still have a ton of wires! Want to get rid of those wires, relays and fuses? Well now you can!
Though the SPOD has originated form the Off Road Market this unit can be easily used in your street / strip car or race car to control any of your 12VDC accessories as mentioned above.

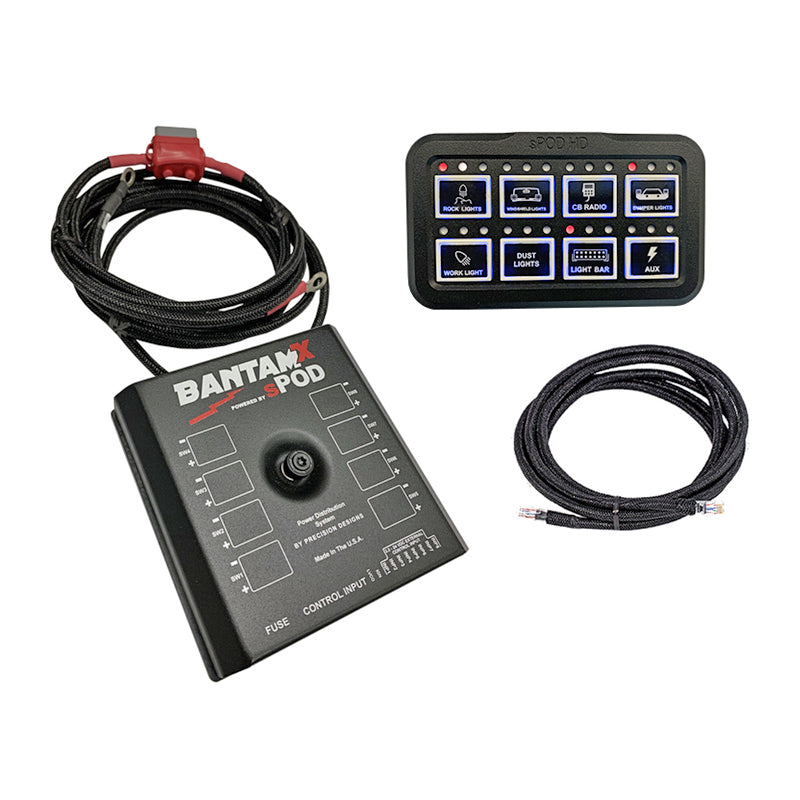

The BantamX will save hours of wiring & installation time! It is a small, 8-circuit (expandable) control system that provides a clean (one ethernet cable into the passenger compartment) and safe way to power and control 12/24VDC accessories. Due to the small footprint of the BantamX, the placement options are endless! No cutting, fishing wires into the cab or tapping into the vehicle‘s electrical system. It’s the perfect over-all solution for all your aftermarket electrical accessories with options unmatched by anyone.
Fully programmable, digital controlled system
8 circuits rated at 30 amps at 12.5 VDC per circuit
Integrated low voltage cutoff (LVCO) battery protection w/ optional override
One ATM mini-style fuse for LVCO protection & reset
Failsafe self-healing fault protection system (from 1.5 to 30amps)
Current-sensing MOSFETs controlled by a microprocessor (no fuses & relays)
50amp auto-resetting circuit breaker
Nylon braided battery cables are hi-strand crosslinked copper wire with a silicone jacket
Operates on 12VDC or 24VDC
8-position input terminal block for controlling outputs
Built-in Bluetooth capabilities for remote control
Protection against: overheating, over-current, shorts, reverse polarity & field collapse
Ignition control and safety lock-out for switches 1 and 2 (optional)
Up to 4 BantamX units can be daisy chained & controlled by one Touchscreen
On-demand wireless software updates/upgrades
Powder coated steel base w/ built in hardware
Silicone gasket for weatherproofing
Simple thumb screw fastening aluminum lid with convenient silkscreened outlines for supplied legend placement
Universal & vehicle specific mounting options
Robust insulated base and cover
FEATURES AVAILABLE THROUGH sPOD MOBILE APP (free):
Each switch can be programmed for:
On Road and Off Road mode of operation
The following features are only available through the purchase of our Pro-Series mobile App:
Initial startup current for each circuit is raised to 65amps for 5 seconds
Program any circuit to be always on while still maintaining fault protection
Option to disable deep sleep mode
Selectable auto restart after circuit shuts down from over current/short
Programmable Current Limiting (in 2amp increments up to 30amps)
Selectable auto restart for current limiting shut down
Selectable “Latch” or “Momentary” actions for inputs
Programmable ignition control for all 8 circuits
Variable strobe function to create custom flash/strobe patterns

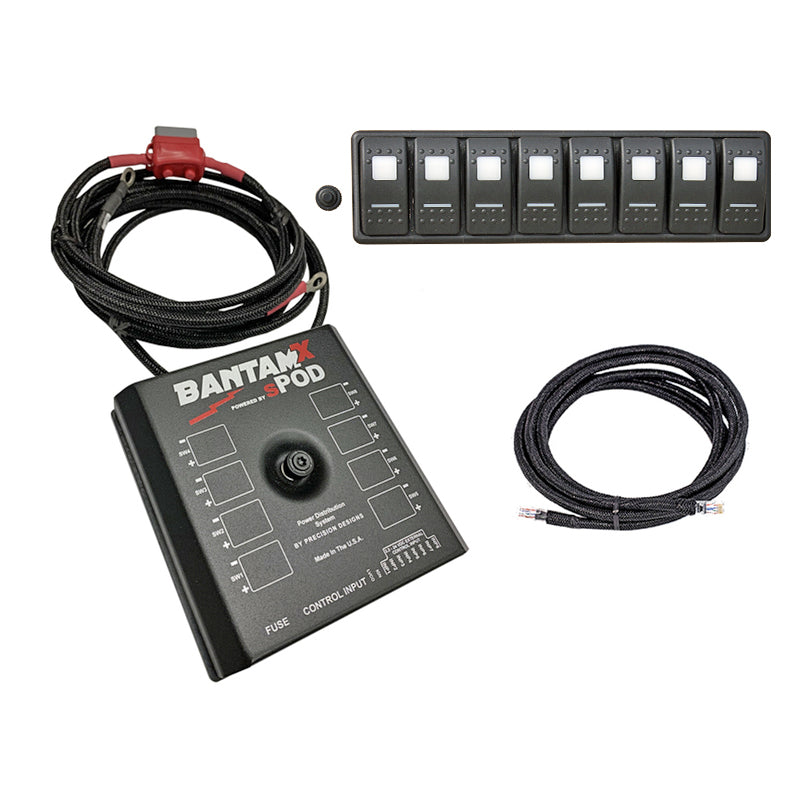

EXTERNAL CONTROLLER OPTIONS (not included with system and can only be used in conjunction with an sPOD controller)
Third party switches
Alpine Audio systems KAC-001 head unit controller
Sensors, thermostats, pressure switches, fan controllers & more

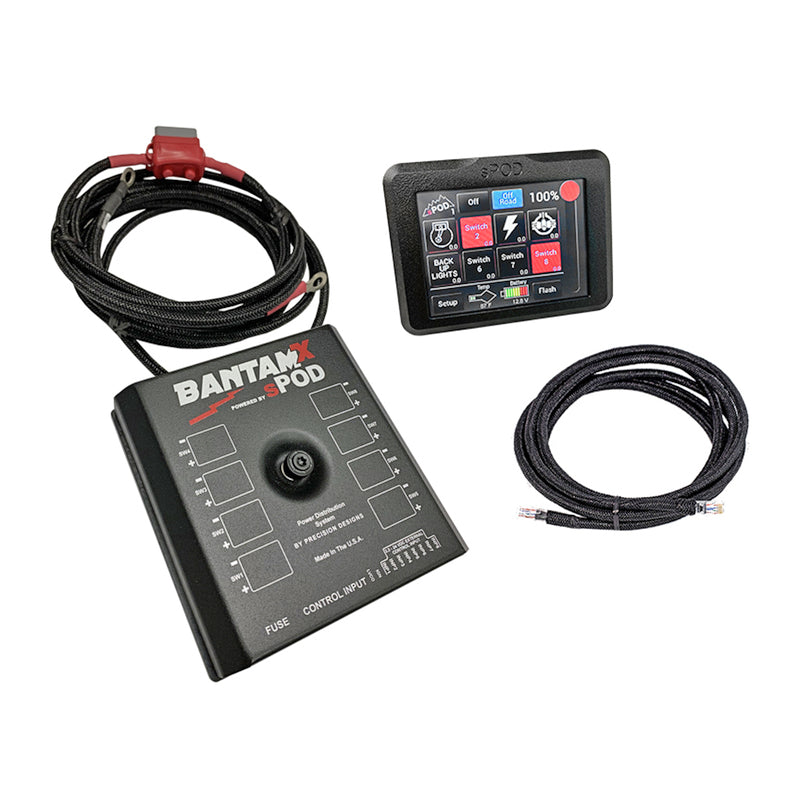

TOUCHSCREEN CONTROL PANEL
Reduced installation time and labor allowing for mounting and connection of eight switches at one time versus individually.
Reduced wire harness complexity, using one harness to our controller to accommodate up to 32 circuits.
Reduced harness size offers an overall reduction in weight, improving the operational efficiency of the equipment.
Increase in switch lifecycle over traditional electromechanical switches.
Touchscreen Control Module Features:
Voltage feedback (vehicles battery/alternator voltage)
Amperage meter for each switch gives you the status of how much current each accessory is drawing
Board temperature feedback (shown on screen)
Customization: legends (3 lines of text)
Automatic backlighting off after 30 minutes of being inactivity
Automatic power off after 6 hours of being inactive or engine not running (Deep sleep mode)
One touch off function
One second hold on off button shuts all circuits down
Automatic system shut down when the touchscreen is unplugged
Multiple Source select (One touchscreen can control up to 32 circuits)
Come with its own mounting bracket.
Bluetooth for use in programming the touchscreen. *
*The primary reason for the Bluetooth integrated into the Touchscreen is for programming purposes, and not for remote control due to the limited range. Touchscreen housings are precision machined billet aluminum which contributes to the distance limitations. Ranges may vary from 5 feet up to 15 feet depending on the location of the Touchscreen, the surroundings, phone type, phone cover, and many other variables.
